Fusion Kit: Fusion Turbine with LED light + Coupling and Contra angle 1:1 - W&H

Fusion Kit: Fusion Turbine with LED light + Coupling and Contra angle 1:1

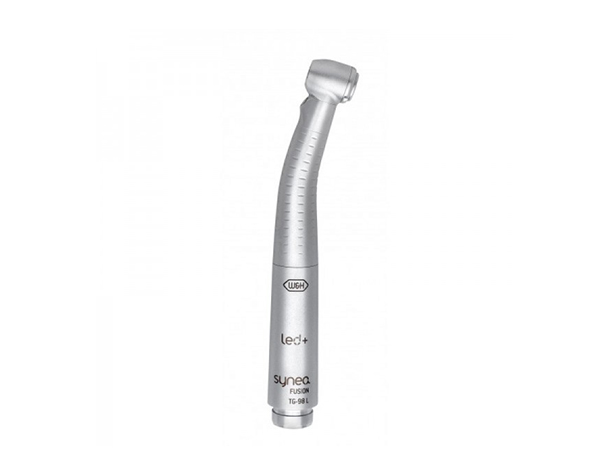

Synea Fusion TG-98 L turbine with LED light

• Lightweight and highly ergonomic.
• It is extremely quiet in operation.
• Ceramic ball bearings.
• Sterilisable and thermodisinfectable.
• Optimum cooling thanks to the Quattro-Spray (quadruple spray). The bur tip is constantly cooled in every application position.
• Hygienic head system: the circulating air in the turbine head prevents the aerosol particles from being sucked in during the gradual deceleration of the rotor.
• Intense illumination with natural colour rendering and optimal positioning of the LEDs

TG-98 L Turbine Technical Specifications

• Light: LED+
• CRI (LED version): >90
• Temperature of the colour 5.500K
• Luminous flux (light): 6,0
• Illumination intensity: 25000 lux
• RotoQuick coupling RM connection
• Head size: Ø 11.5 mm
• Head size with milling cutter: 21.4 mm (19 mm cutter)
• Power: 21 W
• Revolutions: 360.000 r.p.m.
• Rotary instruments: FG milling cutter corresponding to ISO 1797-1, Ø 1.6 mm
• Maximum cutter diameter: 2mm
• Maximum length: 25 mm
• Weight: 42 gr
• Operating pressure of the RotoQuick connection: 3 ± 0,3 bar
• Spray: Quadruple
• Sound intensity: 59 dB (A)
• Manufacturer's reference: 30001000

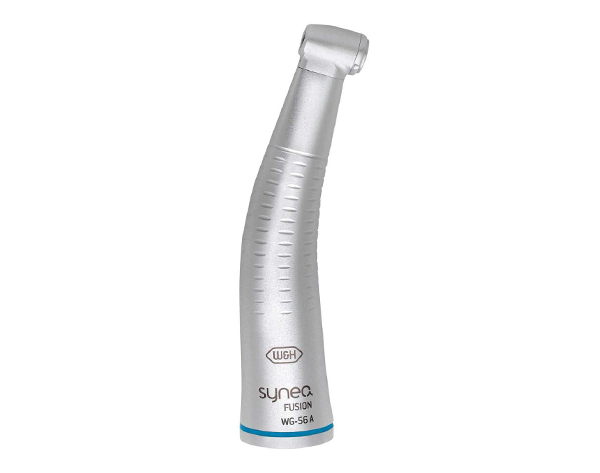

Synea Fusion WG-56 A contra-angle handpiece

• One-piece design: excellent ergonomics and optimum hygiene.
• Silent
• Sterilisable and thermo-disinfectant
• Improved clamping profile.
• Its areas of application: cavity preparation, trepanning, resection, separating, cavity edge refinement and fillings.

Technical Specifications of the AC WG-56 A:

• Transmission: 1:1
• Head size 9.5 mm
• Head height (with bur 19 mm): 20 mm
• Maximum diameter of working part: 34mm.
• Spray: single >50 ml/min
• Manufacturer's reference: 30010000

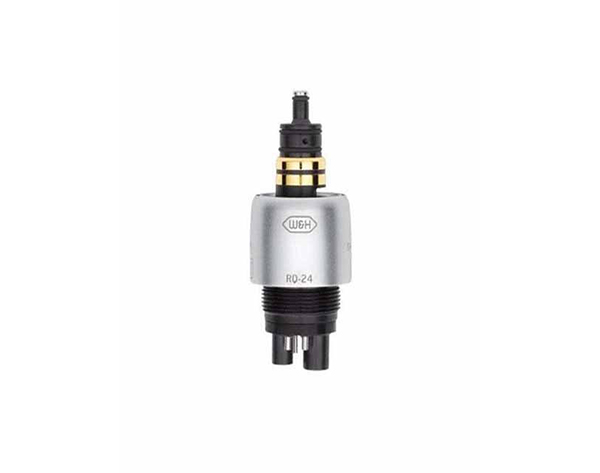

Rotoquick RQ-24 coupling with light

• Enable the versatile use of LED+, LED and halogen instruments by simply pressing and pulling "Click & Pull".
• You can continuously regulate the water inlet of the spray.
• You can also perform the reaspiration block.
• It is sterilisable.
• Manufacturer's reference: 10402400
